Section 16.
Process Control.
"All stable processes we shall predict. All unstable process we
shall control."
John von Neumann.
16. Linux process control.
The process is one of the
fundamental abstractions in Unix/Linux operating systems. A
process is a program in execution. It consists of the
executing program code, a set of resources such as open
files, internal kernel data, an address space, one or more
threads of execution and a data section containing global
variables. Every process running on a Linux host has a
process id(entity).
Processes are managed by the
kernel.
The command ps lists the
status of the current processes.
sa101$ ps
PID TTY TIME CMD
24837 pts/5 00:00:00 bash
24839 pts/5 00:00:00 ps
sa101$ ps -af
UID PID PPID C STIME TTY TIME CMD
fulford 4284 3850 0 Dec04 pts/0 00:12:07 terminal
fulford 4288 1 0 Dec04 pts/0 00:00:00 dbus-launch --autolaunch efe6149
fulford 4291 4284 0 Dec04 pts/0 00:00:00 gnome-pty-helper
fulford 4391 4389 0 Dec04 pts/3 00:01:15 gv
fulford 18218 3850 0 Dec09 pts/0 00:00:02 alpine
fulford 20160 23761 1 Dec09 pts/4 00:06:25 /usr/lib/firefox-4.0/firefox-bin
fulford 21621 20160 1 Dec09 pts/4 00:05:27 /usr/lib/firefox-4.0/plugin-cont
fulford 22635 3864 0 Dec06 pts/1 00:00:00 man hier
fulford 22638 22635 0 Dec06 pts/1 00:00:00 sh -c (cd "/usr/share/man" && (e
fulford 22639 22638 0 Dec06 pts/1 00:00:00 sh -c (cd "/usr/share/man" && (e
fulford 22643 22639 0 Dec06 pts/1 00:00:00 /usr/bin/less -is
fulford 24552 4391 0 Dec09 pts/3 00:00:13 gs -sDEVICE=x11 -dTextAlphaBits=
fulford 24576 4292 0 Dec09 pts/2 00:00:00 vi proccntrl.ms
fulford 24835 24576 0 00:05 pts/2 00:00:00 script
fulford 24836 24835 0 00:05 pts/2 00:00:00 script
fulford 24841 24837 0 00:05 pts/5 00:00:00 ps -af
Note that the snapshot generated
by the ps command includes ps itself.
Each process is run with a user
identity uid, when the -f flag is used this is
listed as the first field of each line of output (other than
the first line which gives a heading to each field in the
subsequent lines).
The UID may be the UID of the
user invoking the process or it maybe set using the file
ownership and a set user id (suid) bit in the file
permissions.
Each process has a unique
reference number called the process id and a
parent process id, which identifies the process from which
it was invoked.
All processes can be traced back
to the init process or process id 1.
sa101$ ps -f
UID PID PPID C STIME TTY TIME CMD
fulford 24986 24985 0 00:22 pts/5 00:00:00 bash -i
fulford 24987 24986 0 00:22 pts/5 00:00:00 ps -f
sa101$ ps -fp 24985
UID PID PPID C STIME TTY TIME CMD
fulford 24985 24984 0 00:22 pts/2 00:00:00 script
sa101$ ps -fp 24984
UID PID PPID C STIME TTY TIME CMD
fulford 24984 24861 0 00:22 pts/2 00:00:00 script
sa101$ ps -fp 24861
UID PID PPID C STIME TTY TIME CMD
fulford 24861 4292 0 00:08 pts/2 00:00:00 vi proccntrl.ms
sa101$ ps -fp 4292
UID PID PPID C STIME TTY TIME CMD
fulford 4292 4284 1 Dec04 pts/2 01:24:39 bash
sa101$ ps -fp 4284
UID PID PPID C STIME TTY TIME CMD
fulford 4284 3850 0 Dec04 pts/0 00:12:10 terminal
sa101$ ps -fp 3850
UID PID PPID C STIME TTY TIME CMD
fulford 3850 3848 0 Dec04 pts/0 00:00:00 bash
sa101$ ps -fp 3848
UID PID PPID C STIME TTY TIME CMD
fulford 3848 3843 0 Dec04 ? 00:00:01 xterm -sb
sa101$ ps -fp 3843
UID PID PPID C STIME TTY TIME CMD
fulford 3843 3828 0 Dec04 ? 00:01:37 wmaker --for-real
sa101$ ps -fp 3828
UID PID PPID C STIME TTY TIME CMD
fulford 3828 2269 0 Dec04 ? 00:00:00 wmaker
sa101$ ps -fp 2269
UID PID PPID C STIME TTY TIME CMD
root 2269 2259 0 Dec04 ? 00:00:00 -:0
sa101$ ps -fp 2259
UID PID PPID C STIME TTY TIME CMD
root 2259 1 0 Dec04 ? 00:00:00 /usr/bin/kdm -nodaemon
sa101$ ps -fp 1
UID PID PPID C STIME TTY TIME CMD
root 1 0 0 2012 ? 00:00:40 init [4]
16.1. Background processes.
Programs can be invoked as
background processes by appending the & character
to the command.
In response the shell
|
• |
|
prints a job number (in square
brackets) and the PID, |
|
• |
|
prompts for further input
without waiting for the process to complete, |
|
• |
|
disconnects STDIN from the
terminal device, |
|
• |
|
does not disconnect STDOUT or
STDERR from the terminal. |
We can bring a job back to the
foreground with the fg command,
sa101$ find / -name impossible.file.name 2>/dev/null &
[1] 25199
sa101$ ps
PID TTY TIME CMD
25197 pts/5 00:00:00 bash
25199 pts/5 00:00:00 find
25200 pts/5 00:00:00 ps
sa101$ jobs
[1]+ Running find / -name impossible.file.name 2> /dev/null&
sa101$ fg
find / -name impossible.file.name 2> /dev/null
and push it back into the
background with the terminal metacharacter ^Z.
^Z
[1]+ Stopped find / -name impossible.file.name 2> /dev/null
sa101$ bg
[1]+ find / -name impossible.file.name 2> /dev/null &
sa101$ kill %1
When a running process is pushed
into the background it stops running. It can be scheduled to
run again by issuing the bg command.
16.2. Terminating a process.
A process can be prematurely
terminated by setting a signal flag for the kernel.
The list of signals available
can be obtained with the kill -l command.
Details of each signal are in the man pages.
sa10$ man 7 signal
The signals commonly set by
users are
SIGINT
(2). This is the keyboard interrupt invoked by
^C.
SIGTERM
(15) which requests an orderly termination of process
(termination of subprocesses, closing files etc.) and
SIGKILL
(9). SIGKILL is invoked with the
kill -9 <pid> command. It should only be
used in extremis when other signals have failed.
Background jobs can be killed by
using the job number prepended with the character
%.
sa101$ find / -name afile -print 2>/dev/null|wc&
[1] 25631
sa101$ ps
PID TTY TIME CMD
25621 pts/5 00:00:00 bash
25630 pts/5 00:00:00 find
25631 pts/5 00:00:00 wc
25632 pts/5 00:00:00 ps
sa101$ kill %1
sa101$ ps
PID TTY TIME CMD
25621 pts/5 00:00:00 bash
25635 pts/5 00:00:00 ps
[1]+ Terminated find / -name afile -print 2> /dev/null | wc
NB. Killing the job
%1 killed all the associated processes in the
script.
16.3. Looking for process hogs.
When a process occupies an
excessive number of CPU cycles it is called a "process
hog".
A full listing of running
processes should look something like this:
sa101$ ps -ef
UID PID PPID C STIME TTY TIME CMD
root 1 0 0 Dec04 ? 00:00:05 init [4]
root 2 0 0 Dec04 ? 00:00:00 [kthreadd]
root 3 2 0 Dec04 ? 00:00:03 [ksoftirqd/0]
root 6 2 0 Dec04 ? 00:00:00 [migration/0]
root 7 2 0 Dec04 ? 00:00:00 [cpuset]
root 8 2 0 Dec04 ? 00:00:00 [khelper]
root 9 2 0 Dec04 ? 00:00:00 [kdevtmpfs]
root 10 2 0 Dec04 ? 00:00:00 [netns]
root 11 2 0 Dec04 ? 00:00:00 [kworker/u:1]
root 472 2 0 Dec04 ? 00:00:04 [sync_supers]
root 474 2 0 Dec04 ? 00:00:00 [bdi-default]
root 476 2 0 Dec04 ? 00:00:00 [kblockd]
root 559 2 0 Dec04 ? 00:00:00 [ata_sff]
root 566 2 0 Dec04 ? 00:00:00 [khubd]
root 572 2 0 Dec04 ? 00:00:00 [md]
root 674 2 0 Dec04 ? 00:00:00 [rpciod]
root 687 2 0 Dec04 ? 00:00:00 [khungtaskd]
root 693 2 0 Dec04 ? 00:00:12 [kswapd0]
root 757 2 0 Dec04 ? 00:00:00 [fsnotify_mark]
root 782 2 0 Dec04 ? 00:00:00 [nfsiod]
root 792 2 0 Dec04 ? 00:00:00 [jfsIO]
root 793 2 0 Dec04 ? 00:00:00 [jfsCommit]
root 794 2 0 Dec04 ? 00:00:00 [jfsSync]
root 802 2 0 Dec04 ? 00:00:00 [xfs_mru_cache]
root 803 2 0 Dec04 ? 00:00:00 [xfslogd]
root 804 2 0 Dec04 ? 00:00:00 [xfsdatad]
root 805 2 0 Dec04 ? 00:00:00 [xfsconvertd]
root 807 2 0 Dec04 ? 00:00:00 [ocfs2_wq]
root 810 2 0 Dec04 ? 00:00:00 [user_dlm]
root 817 2 0 Dec04 ? 00:00:00 [glock_workqueue]
root 818 2 0 Dec04 ? 00:00:00 [delete_workqueu]
root 822 2 0 Dec04 ? 00:00:00 [gfs_recovery]
root 824 2 0 Dec04 ? 00:00:00 [crypto]
root 867 2 0 Dec04 ? 00:00:00 [kthrotld]
root 996 2 0 Dec04 ? 00:00:00 [cciss_scan]
root 1015 2 0 Dec04 ? 00:00:00 [fc_exch_workque]
root 1016 2 0 Dec04 ? 00:00:00 [fc_rport_eq]
root 1017 2 0 Dec04 ? 00:00:00 [fcoethread/0]
root 1019 2 0 Dec04 ? 00:00:00 [fnic_event_wq]
root 1105 2 0 Dec04 ? 00:00:00 [scsi_eh_2]
root 1108 2 0 Dec04 ? 00:00:00 [scsi_eh_3]
root 1112 2 0 Dec04 ? 00:00:00 [kworker/u:3]
root 1164 2 0 Dec04 ? 00:00:00 [scsi_eh_4]
root 1167 2 0 Dec04 ? 00:00:00 [scsi_eh_5]
root 1186 2 0 Dec04 ? 00:00:00 [exec-osm]
root 1192 2 0 Dec04 ? 00:00:00 [block-osm]
root 1316 2 0 Dec04 ? 00:00:10 [kjournald]
root 1366 1 0 Dec04 ? 00:00:00 /sbin/udevd --daemon
root 1422 2 0 Dec04 ? 00:00:00 [kpsmoused]
root 1802 2 0 Dec04 ? 00:00:00 [nfsd]
root 1803 2 0 Dec04 ? 00:00:00 [nfsd]
root 1807 2 0 Dec04 ? 00:00:00 [nfsd]
daemon 1851 1 0 Dec04 ? 00:00:00 /usr/sbin/atd -b 15 -l 1
root 1854 1 0 Dec04 ? 00:00:19 sendmail: accepting connections
smmsp 1857 1 0 Dec04 ? 00:00:00 sendmail: Queue runner@00:25:00
root 1874 1 0 Dec04 ? 00:01:49 /usr/local/bin/spamd -d --pidfil
apache 2150 2123 0 Dec04 ? 00:01:27 /usr/sbin/httpd -k start
apache 2151 2123 0 Dec04 ? 00:01:28 /usr/sbin/httpd -k start
apache 2152 2123 0 Dec04 ? 00:01:31 /usr/sbin/httpd -k start
root 2234 2136 0 Dec04 ? 00:00:00 /usr/sbin/smbd -D
root 2242 1 0 Dec04 ? 00:00:14 automount
root 2252 1 0 Dec04 ? 00:00:05 /usr/local/sbin/opendkim -p loca
root 2253 1 0 Dec04 tty1 00:00:00 /sbin/agetty 38400 tty1 linux
root 2254 1 0 Dec04 tty2 00:00:00 /sbin/agetty 38400 tty2 linux
root 2255 1 0 Dec04 tty3 00:00:00 /sbin/agetty 38400 tty3 linux
root 2256 1 0 Dec04 tty4 00:00:00 /sbin/agetty 38400 tty4 linux
root 2257 1 0 Dec04 tty5 00:00:00 /sbin/agetty 38400 tty5 linux
root 2263 2259 0 Dec04 tty7 00:41:22 /usr/bin/X -br :0 vt7 -nolisten
root 2266 2 0 Dec04 ? 00:00:00 [ttm_swap]
root 2269 2259 0 Dec04 ? 00:00:00 -:0
apache 2287 2123 0 Dec04 ? 00:01:39 /usr/sbin/httpd -k start
root 3753 1 0 Dec04 ? 00:00:00 /usr/sbin/console-kit-daemon --n
root 3818 1 0 Dec04 ? 00:00:00 /usr/libexec/polkitd --no-debug
fulford 28692 28691 0 12:00 pts/5 00:00:00 ps -ef
NB. Output edited and
truncated.
Very few processes appear to
register any CPU time at all. Of those that do only those
that have been running for days have registered more than a
few seconds.
If a second or third snapshot is
taken and the CPU time on a process is rising rapidly, we
may suspect a process hog.
The command top can also
assist in identifying process hogs.
sa101$ top
top - 12:12:16 up 5 days, 22:19, 6 users, load average: 0.04, 0.14, 0.46
Tasks: 151 total, 1 running, 149 sleeping, 1 stopped, 0 zombie
Cpu(s): 4.3%us, 0.7%sy, 0.0%ni, 93.9%id, 1.0%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 493116k total, 308328k used, 184788k free, 6328k buffers
Swap: 989972k total, 387928k used, 602044k free, 111664k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
28765 fulford 20 0 2828 1084 808 R 2.0 0.2 0:00.01 top
1 root 20 0 2008 4 0 S 0.0 0.0 0:05.63 init
2 root 20 0 0 0 0 S 0.0 0.0 0:00.14 kthreadd
3 root 20 0 0 0 0 S 0.0 0.0 0:03.15 ksoftirqd/0
6 root RT 0 0 0 0 S 0.0 0.0 0:00.00 migration/0
7 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 cpuset
8 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 khelper
9 root 20 0 0 0 0 S 0.0 0.0 0:00.00 kdevtmpfs
10 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 netns
11 root 20 0 0 0 0 S 0.0 0.0 0:00.06 kworker/u:1
472 root 20 0 0 0 0 S 0.0 0.0 0:04.60 sync_supers
474 root 20 0 0 0 0 S 0.0 0.0 0:00.03 bdi-default
476 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 kblockd
559 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 ata_sff
566 root 20 0 0 0 0 S 0.0 0.0 0:00.01 khubd
572 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 md
674 root 0 -20 0 0 0 S 0.0 0.0 0:00.00 rpciod
top - 12:12:19 up 5 days, 22:19, 6 users, load average: 0.04, 0.14, 0.45
16.4. Nice and renice.
Each process is allocated a run
time priority level. The priority can be adjusted by using
nice when invoking the command.
sa101$ /et nice find / -ctime 1000 >/var/tmp/olderfiles &
[1] 29408
sa101$ ps -l
F S UID PID PPID C PRI NI ADDR SZ WCHAN TTY TIME CMD
0 S 1000 29402 29401 0 80 0 - 1171 wait pts/9 00:00:00 bash
0 D 1000 29408 29402 0 90 10 - 619 sleep_ pts/9 00:00:00 find
0 R 1000 29409 29402 0 80 0 - 664 - pts/9 00:00:00 ps
Note that the nice value for
find is 10 which raises the priority from the default
80 to 90 (the higher the number the lower the priority).
Although not much used by
ordinary users these days nice is still an important
tool for administrators of busy multi-user and multi-tasking
systems where we want to start a reporting process in the
background when time to completion is not an issue.
The range of values that can be
used to modify the priority is -20 to 19 (least favourable
priority).
The nice value on a running
process can be modified with the renice command. The
systems administrator may want to renice a suspect
process pending further investigation or raise the priority
of process that appears to be hung, is not being rescheduled
and hence is not seeing a termination signal.
sa101# nice find / -ctime +1000 >/var/tmp/oldfiles &
[2] 29472
sa101# ps -l
F S UID PID PPID C PRI NI ADDR SZ WCHAN TTY TIME CMD
0 S 0 29394 29393 0 80 0 - 920 wait pts/8 00:00:00 bash
4 D 0 29467 29394 2 90 10 - 727 sleep_ pts/8 00:00:01 find
1 D 0 29472 29394 0 80 0 - 920 sleep_ pts/8 00:00:00 bash
4 R 0 29473 29394 0 80 0 - 664 - pts/8 00:00:00 ps
sa101# renice +10 -p 29467
29467 (process ID) old priority 10, new priority 19
sa101# ps -l
F S UID PID PPID C PRI NI ADDR SZ WCHAN TTY TIME CMD
0 S 0 29394 29393 0 80 0 - 920 wait pts/8 00:00:00 bash
4 D 0 29467 29394 1 99 19 - 727 sleep_ pts/8 00:00:01 find
4 R 0 29483 29394 0 80 0 - 664 - pts/8 00:00:00 ps
16.5. Checking the CPU.
The current overall systems
activity can be monitored with the vmstat
command.
sa101$ t vmstat 5 5
procs -----------memory---------- ---swap-- -----io---- -system-- ----cpu----
r b swpd free buff cache si so bi bo in cs us sy id wa
0 0 375380 67912 9604 147524 2 3 12 21 81 72 4 1 94 1
0 0 375380 67912 9604 147528 0 0 0 0 206 636 4 1 95 0
0 0 375356 67788 9620 147528 0 0 0 22 218 646 4 1 95 0
0 0 375348 66796 9628 147528 0 0 0 13 213 639 4 1 95 0
0 0 375348 66796 9628 147528 0 0 0 22 210 641 4 1 95 0
On a well behaved system with no
CPU constraint we should expect the cpu idle time to be
approaching 100%. The number of runnable processes in the
queue should normally be 1 or 0. If we see the idle time
consistently fall below 60% and the number of runnable
processes in the queue exceed 3 there are either badly
behaved programs or inadequate CPU resources. There are
likely to be performance issues if the situation is not soon
addressed.
NB. The first line of
vmstat output shows the averages since the last
reboot and so using the options 5 5 gives us the average to
date and 4 snapshots 5 seconds apart. By setting an interval
of 5 seconds we can negate the impact of vmstat
itself on the report.
16.6. Exercise.
Use top to find the
processes on your host that are currently using the most CPU
cycles.
Check the output of
vmstat and then try to raise the activity level by
invoking several background processes and then running a
couple of find commands (starting from the root
directory with the output redirected to disk files).
Take ps listings
redirected to files and check the output of vmstat
once more.

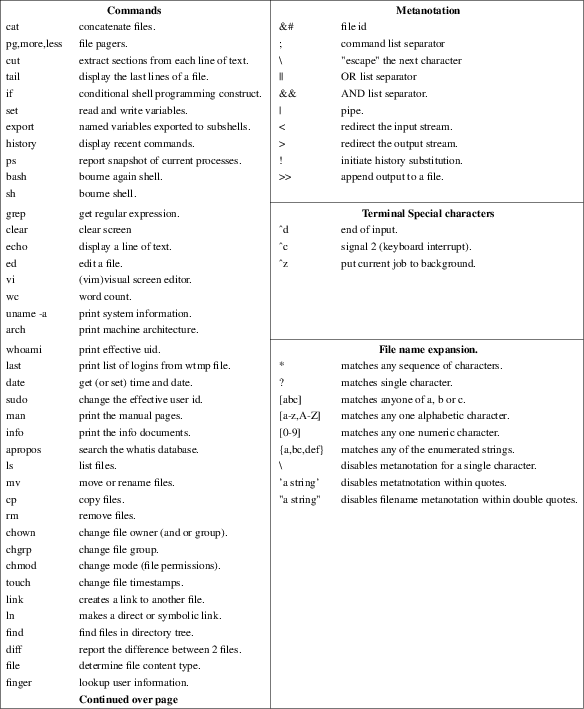

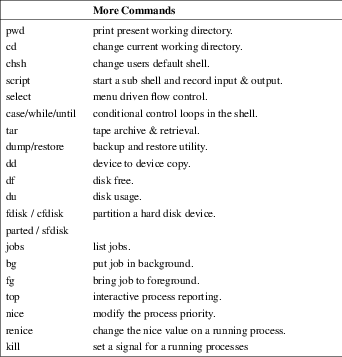

Using the table below revise the
commands you have learned in the Linux training course to
date.
16.7. Tools and metanotation:
