Section 13.
Linux file store.
"Making
files is easy under the UNIX operating system. Therefore,
users tend to create numerous files using large amounts of
file space. It has been said that the only standard thing
about all UNIX systems is the message-of-the-day telling
users to clean up their files."
System V.2 administrator’s guide.
13. Unix / Linux file store.
13.1. Linux file hierarchy.
For a fuller description of the
main directories common to most Linux distributions see
sa101$ man hier

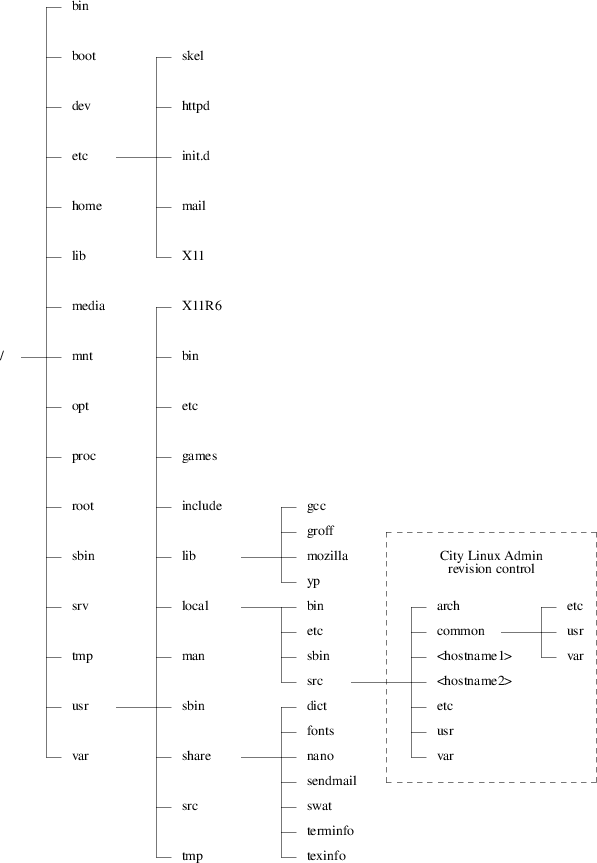

Figure 3 -
File hierarchy (extract)
Files:
are not typed
by name.
have random access at the byte level
are grouped into directories which are organised in a
multilevel hierarchical tree.
can be multi-volume - may be spread across many physical and
logical devices.
File access is standard across
all version of UNIX/Linux.
Peripheral devices are accessed
in the same fashion as data files.
A users home directory is set in
the password file /etc/password. When a user logs onto the
system their session begins with their home directory set as
the current active directory.
sa101$ pwd
sa101$ cd /var
sa101$ cd log
To return to the home directory
you can use the environment variable HOME, tilde
expansion, or the command cd’s default
directory. i.e.
sa101$ cd $HOME
sa101$ cd ~
sa101$ cd
all produce the same result.

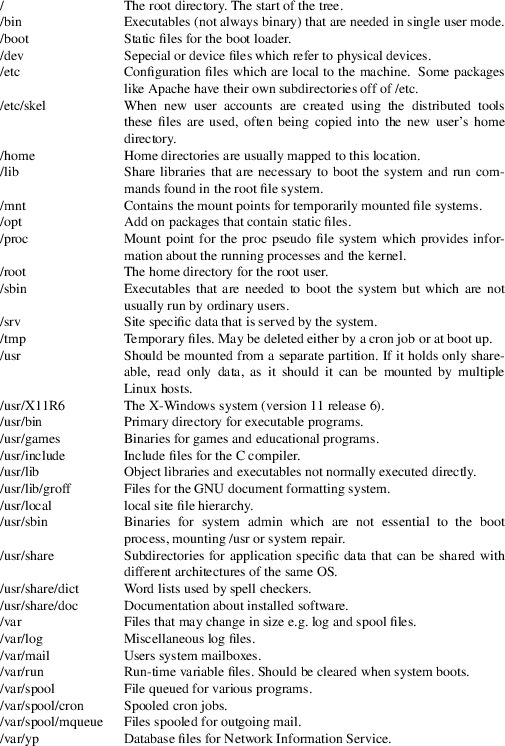

File Hierarchy
For a description of some of the
main directories common to most Linux distributions see
sa101$ man hier
13.2. File naming in Linux.
One of the fundamental objects
in Linux is the disk-file. When we execute a program we copy
the contents of a disk-file into semiconductor memory where
it then runs, usually accessing other files containing data
or text. Every file has a name which may consist of up to
255 characters from the ASCII character set (excluding the
non-printing characters, null, and newline). The following
are valid distinct filenames:-
fileName
filename
FileName
YY_UR_YY_UB_IC_UR_YY_4ME
program1.dat.version11
This_is_a_VALID_ Unix_filename_which_would_be_most_tedious_\
to_type_everytime_we_wished_to_use_it.Please_note_the_\
back-slash_character_allows_continuation_onto_the_\
next_line
Although punctuation and
non-printing characters may be used to construct filenames,
generally speaking it is best to avoid them for reasons
which should become obvious. Usually the filename should
provide more than a hint to the use of the file. The use of
long file names should always be discouraged but the
disadvantage of having to type long names is compensated for
to a degree by bash’s filename completion mechanism
and the use of metanotation.
13.3. File name substitution
Filename metanotation is similar
to that in other software tools. Metanotation is expanded by
the shell before execution of a command by the shell.
E.g.
sa101$ cd eg
sa101$ ls
d d00 d01 d02 d03 f1 f2 f3
sa101$ echo d*
d d00 d01 d02 d03
If no match is found the
metacharacters are interpreted literally.
E.g.
sa101$ cd eg
sa101$ ls echo k*
k*

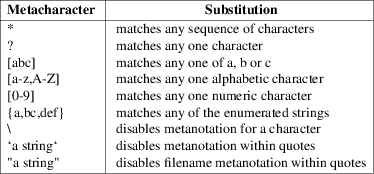

13.3.1. Metanotation in filename substitution.
13.4. File name completion.
By typing the first characters
of a filename, then the <tab> (or <esc>
depending upon the "flavor" of Unix you are
running), the shell will attempt multiple types of
completion before attempting to complete the file name by
matching the characters entered to the file names available
in the current directory.
Using filename completion
encourages the practice of placing the unique part of a file
name at the beginning rather than at the end. For example,
if I had log files from my daily work in the month of May,
and named them:
logfiledata052200
logfiledata052300
logfiledata052400
I would need to type the
following information to have the shell complete the file
name for me:
sa101$ less logfiledata0522<CR>
While had I named my log files
like this:
220500logfiledata
230500logfiledata
240500logfiledata
All I would need to type is:
sa101$ less 22<tab>
The shell would complete the
file name. Potentially this would save 15 keystrokes!
However with the use of file name metanotation we could find
the former with
sa101$ less *22
and the latter with
sa101$ less 22*
It should be noted that using
the day, month and year in the DDMMYY format as above will
mean that a standard listing with ls will not result
in a date ordered list. While using appropriate options will
solve this problem by listing in the order of the creation
date stamp, the problem becomes more frustrating if we need
to step through an ordered list in a shell program loop.
The string
"logfiledata" in the above example contributes
little to our understanding of the file contents. It would
be better by far, to collect all the log files together in a
directory created for the purpose and to use the date in the
form YYMMDD thus:
000522
000523
000524
The operating system imposes no
structure rules about filenames. File extensions and version
numbers are application dependent, for example the C
compiler will expect source code to be stored in files with
an extension of .c i.e. prog.c and web servers expect web
pages to end in either .html or .htm.
It is common practice to name
the instruction files for sed and awk scripts as below.
namechng.awk -
(an awk script)
lowerhtml.sed - (a sed script)
File naming is very important,
and good practice can save a lot of time and confusion.
Although, Linux filename syntax
is very flexible there will be times when files will be used
on multiple operating systems, hence, the syntax rules of
the more restrictive operating system will prevail.
Some operating systems allow
spaces within the file name e.g. "My documents".
Since the Linux shells use white space (one or more spaces
or tabs) as the delimiter if you transferred the file to a
Linux machine, and then tried to issue the following
command:
sa101$ cat My documents
the shell would look for a file
called "My" and failing to find it, would issue an
error message.
sa101$ cd eg
sa101$ ls -l M*
-rw-r--r-- 1 fulford fulford 0 Dec 7 01:58 My documents
sa101$ cat My documents
cat: My: No such file or directory
cat: documents: No such file or directory
If we must access
My documents on a UNIX / Linux file system we
can either use the escape character (\) before the
intermediate space or place the whole file name in single or
double quotes.
sa101$ ls -l M*
-rw-r--r-- 1 fulford fulford 0 Dec 7 01:58 My documents
sa101$ cat My\ documents
sa101$ cat M "My documents"
sa101$ cat ’My documents’
13.5. File contents
If we want to know the content
type of a file the command is
sa101$ file <filename>
Text files can be examined with
a variety of tools. Pagers format text files and input
streams for viewing on screen. The default BSD pager was
more. The standard Linux pager has become
less, named by analogy with more, with the old
sore that "less is more" in mind.
The default systems V pager for
many years was pg.
All three are now commonly
available in Linux.
To quickly check the first few
lines in a file, perhaps to see the source code control
statements, copyright statements etc. we can use
head.
To see the end of a file use
tail.
The command tail has a
particularly useful flag -f which when used causes
the program when it reaches the end of file to wait for
further input. This allows us to monitor log files e.g.
tail -f /var/log/syslog
13.6. Linux Filestore protection.
Each file,
directory and device has protection attributes in 3
categories; user (u), group (g) and others (o).
Each category
has 3 modes of access: read (r), write (w) and execute /
search (x), protection information given by long listing
(ls -l), change protection (mode) with chmod.
For basic modes 9 bits are used which can either be on (1)
or off (0).
In the example above the permission are:
The easy way to work out the
octal value is to treat each set of 3 permissions as a
separate binary number so that the 3 columns equal 4,2 and 1
from left to right.
sa101$ export PS1=sa101$
sa101$ touch demo;ls -l demo
-rw-r--r-- 1 fulford operators 0 Nov 25 07:32 demo
sa101$ chmod 777 demo;ls -l demo
-rwxrwxrwx 1 fulford operators 0 Nov 25 07:32 demo
sa101$ chmod 664 demo;ls -l demo
-rw-rw---- 1 fulford operators 0 Nov 25 07:32 demo
sa101$ chmod 660 demo;ls -l demo
-rw-rw---- 1 fulford operators 0 Nov 25 07:32 demo
sa101$ chmod o+r demo;ls -l demo
-rw-rw-r-- 1 fulford operators 0 Nov 25 07:32 demo
The long file listing also shows
the owner and the group assignment of the file, in the
examples above fulford and operators
respectively.
The owner of the file can change
the group to another group of which they are a member. An
ordinary user cannot give away ownership of a file. The
root user can reassign the ownership and group of any
file to any owner or group.
E.g.
sa101$ touch demo;ls -l demo
-rw-rw-r-- 1 fulford fulford 0 Nov 25 08:09 demo
sa101$ chgrp bin demo;ls -l demo
chgrp: changing group of ’demo’: Operation not permitted
-rw-rw-r-- 1 fulford fulford 0 Nov 25 08:09 demo
sa101$ grep ^bin /etc/group
bin:x:1:root,bin
sa101$ chgrp operator demo;ls -l demo
-rw-rw-r-- 1 fulford operator 0 Nov 25 08:09 demo
sa101$ grep operator /etc/group
operator:x:503:fulford, smith
13.7. Linux file types.
If we take a long file listing
the file type is shown on the left of each output line.
There are seven file types.
Ordinary or regular (-) files are files that are
not directories or "special" files. These may be
text files, binaries, graphic images, sound files or any
other regular file.
Directories (d) are the
mechanism whereby groups of files are are collected together
in a hierarchy of file groups.
There are five types of special
file.
In Linux / Unix all devices
(with the exception of network devices) are handled as files
and have a location in the file system. The device file is
used to apply access rights and direct operations to the
appropriate device drivers.
There are two types of device
file, character special files (c) and block special files
(b). Character devices provide for a serial stream of input
or output. Block special devices allow random access.
Unix domain sockets (c)
are special files used for inter process communication.
Sockets are fully duplex capable, that is they allow two way
communication through the file.
FIFO (first in, first out) files
are named pipes (p). Named pipes allow inter-process
communication between processes that exist in different user
spaces. They can be created on demand anywhere in the file
hierarchy.
Symbolic links (s) are
files which reference another file. The file stores a text
representation of the referenced file’s path. The
referenced path may be absolute or relative and in fact may
not exist at all.
Symbolic links may be made
between directories and may be made across file systems.
13.8. Exercise
sa101$ mkdir test
sa101$ cd test
sa101$ touch 310511 140611 300611 090512 120512 130512
sa101$ ls
Rename the files to produce a
date ordered list with the ls command.
sa101$ cat >main.c
#include <stdio.h>
main(_)
{ printf("Hello, World\n");
}
^d
sa101$ gcc main.c
sa101$ file main.c a.out
sa101$ ./a.out
sa101$ file /bin/bash
sa101$ file /bin/sh
sa101$ pwd
/home/fulford/sa101
sa101$ mkdir eg;ls -ld eg
drwxr-xr-x 2 fulford fulford 4096 Nov 25 10:47 eg
sa101$ cd eg
sa101$ mkdir d
sa101$ ls -ld d
drwxr-xr-x 2 fulford fulford 4096 Nov 25 10:48 d
sa101$ chmod 000 d;ls -ld d
d--------- 2 fulford fulford 4096 Nov 25 10:48 d
sa101$ cd d
bash: cd: d: Permission denied
sa101$ chmod 100 d;ls -ld d
d--x------ 2 fulford fulford 4096 Nov 25 10:48 d
sa101$ cd d
sa101$ touch file1
touch: cannot touch ’file1’: Permission denied
sa101$ chmod 300 .;ls -ld .
d-wx------ 2 fulford fulford 4096 Nov 25 10:48 .
sa101$ touch file1;ls
ls: cannot open directory .: Permission denied
sa101$ sudo ls
file1
sa101$ sudo ls -l
total 0
-rw-r--r-- 1 fulford fulford 0 Nov 25 10:50 file1
sa101$ cat >file1
contents
^d
sa101$ cat file1
contents
sa101$ cd eg;ls -l
total 4
d-wx------ 2 fulford fulford 4096 Nov 25 10:50 d
sa101$ l touch f1
sa101$ link f1 f2;ls -l
total 4
d-wx------ 2 fulford fulford 4096 Nov 25 10:50 d
-rw-r--r-- 2 fulford fulford 0 Nov 25 21:25 f1
-rw-r--r-- 2 fulford fulford 0 Nov 25 21:25 f2
NB: The files f1 an f2
are identical. They are in fact the same file. We have
created 2 directory entries for the same file.
sa101$ ln -s f1 f3
sa101$ ls -l
total 4
d-wx------ 2 fulford fulford 4096 Nov 25 10:50 d
-rw-r--r-- 2 fulford fulford 0 Nov 25 21:25 f1
-rw-r--r-- 2 fulford fulford 0 Nov 25 21:25 f2
lrwxrwxrwx 1 fulford fulford 2 Nov 25 21:26 f3 -> f1
Note the difference between the
results of ln and ln -s. In the second
instance we create a new file with a symbolic reference to
the old file. If f3 is deleted the file f1 remains.
13.9. Exercise.
Try deleting f3 and take a new
long listing.
Delete f1 or f2 and take a long
listing.
Deleting the target file leaves
broken symbolic links on the system.

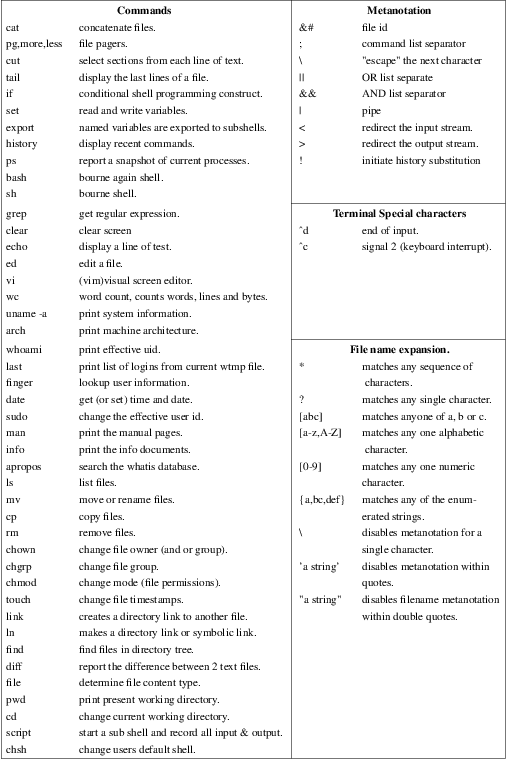

Using the table below revise the
material covered so far.
13.10. Tools and metanotation:
